Test setup:
- Keithley 237 (I-V measurements)
- HP 4284A (C-V measurements)
- FELIX chip
( PS manual
) (75-80 ns shaping)
- CERN PCB
- SEQSI ( programable multi-channel pulse generator - timing)
- Tektronix 2440 digital scope used for ADC (8-bit) conversion.
- PC (DAQ)
- Refrigerator cooling (to -28oC); temperature is monitored
on the ceramics with Pt-100.

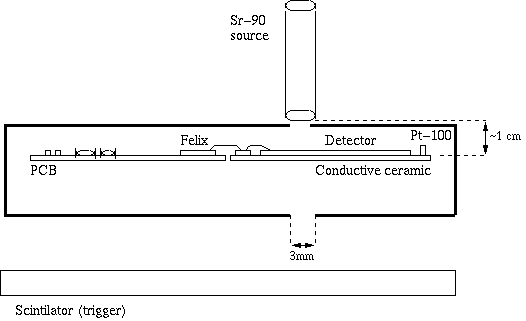

Schematic picture of the test setup (not to scale).
